Power Supply & UPS
CCTV Power Supply & UPS 12V and 5V supply

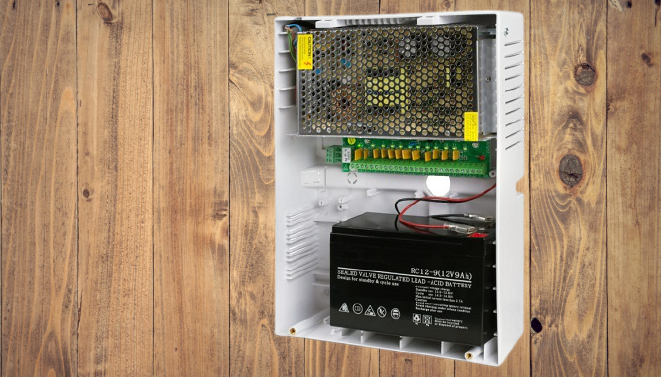

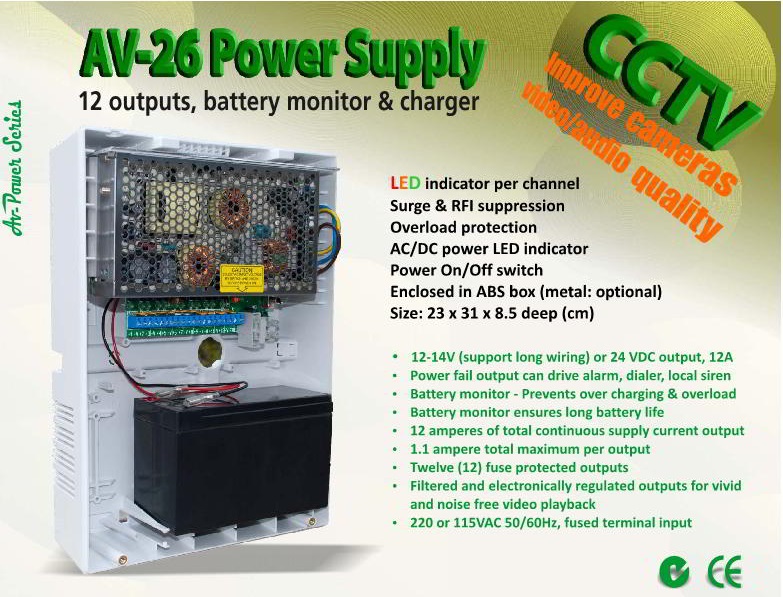

Central Power Supply & UPS for CCTV with battery back up
Power Supply & UPS provides 12V DC at 12.5A (150W)
One DC output 5V 1.2A for router
One high-current channel for NVR/DVR + 11 CCTV cameras
Central Power Supply & UPS for 12 channels
Allows operating voltage and battery backup to DVR, NVR and cameras
Battery backup for recording and CCTV cameras
Each channel (output) is thermal fuse protected
LED indicator for each channel
One faulty channel does not shut down a complete system
Space inside the enclosure for rechargeable battery 5 or 7 or 9 A/H
Improved EMI and RFI protection designed for rush environment
Protects the hard disk damage as a result of power failure
Porsh UPS has 50% higher efficiency compared to AC UPS
Output to activate dialer during malfunction or low battery

Technical details
Output voltage cameras: 12 to 15 DC volts. Adjustable on board. Option Voltage 24 volts
Output current: 12.5A
Output voltage router: 5V 1.2A
Channels: 12-channel plus charger
Chassis: Armored plastic for easy installation
Input voltage: 110 to 220 volts
Connections: Terminal wires for thick wires
Camera protection: electronic fuse 2 amperes thermal fuse
DVR, NVR protection: 3 amperes thermal fuse
Protection: Overload, short circuit, EMI
Charger: Includes battery monitor
Battery type: 12V SLA (sealed lead acid), 7 to 9 A/H
Battery connector: Quick connector
Operating temperature: -20 to +80ºC (-4 to 176ºF)
Enclosure: ABS box
Dimensions: 23 X 31 X 9 cm (9” X 12 1/4” X 3 1/2)

Benefits to the installer
The CCTV system continues to work at AC power fails
Protects the recording hard disk
50% higher efficiency compared to AC UPS
Suitable for all CCTV systems
Quality service free device
